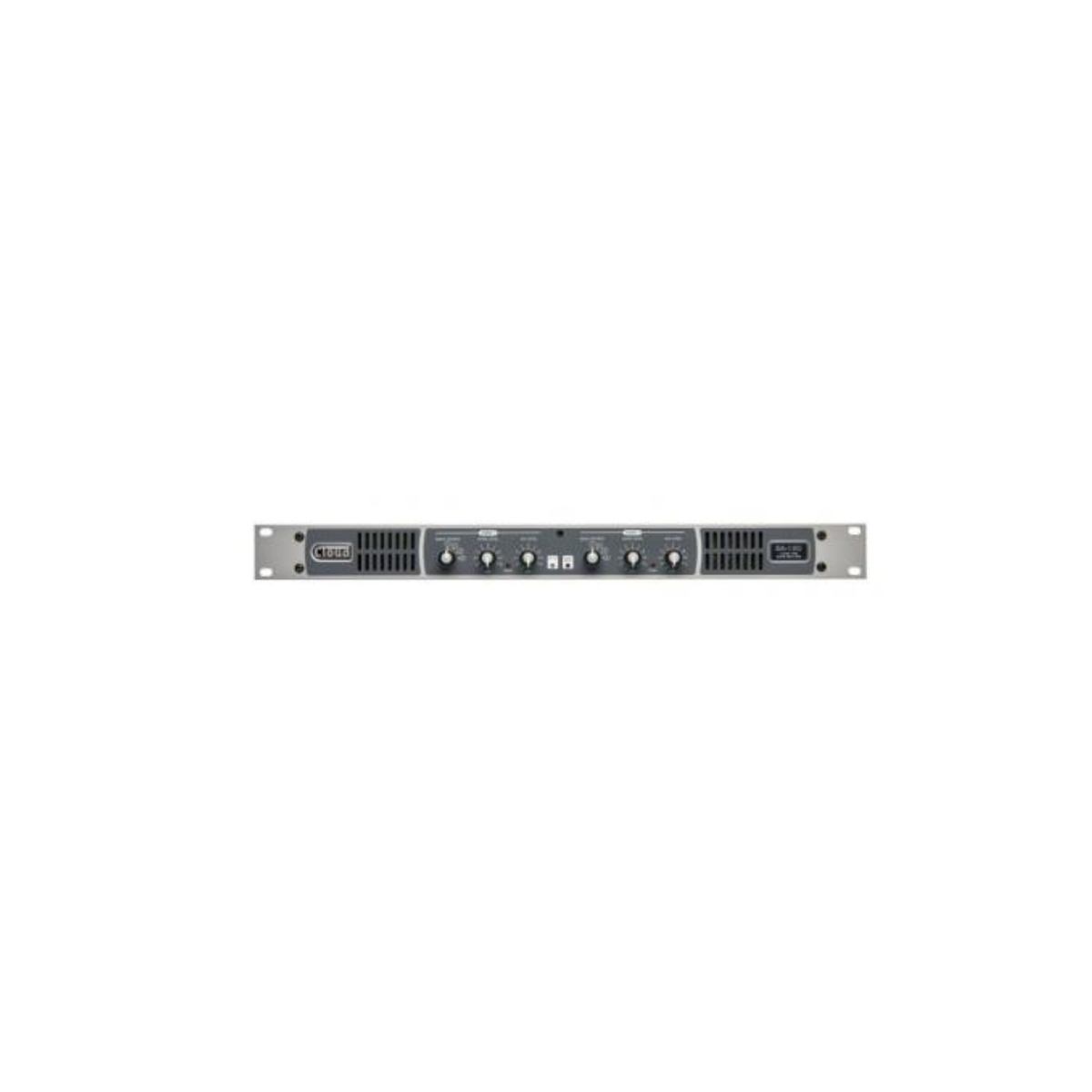

Cloud 24-120 2-Zone Integrated Mixer Amplifier

A complete, compact audio solution for venues that need background music, announcements and paging across two separate areas, the Cloud 24-120 is a two zone mixer amplifier built for houses of worship, retail outlets, hotels, licensed premises and similar spaces. It gives you independent source and level control for each zone, so you can run different music in a bar and a function room, for example, from a single 1U unit.

Two transformer-less Class-D amplifiers deliver 120W per zone, with limiters on each zone plus thermal and short circuit protection. Output impedance is selectable (4Ω, 8Ω, 70V or 100V), so it suits both low impedance and 100V line systems, and the high-impedance power sharing feature automatically allocates unused power between zones, with up to 240W available in total, so you can load one zone more heavily than the other with no configuration.

Connectivity covers four line inputs (two balanced, two unbalanced) and one microphone input with paging options, plus a dedicated 100Hz high-pass filter on the mic input and selectable phantom power by internal jumper. Separate EQ for music and mic signals, mic-over-music priority, an integrated chime triggered by access control, and an RS232 control interface make it flexible for installations of all kinds, and it can be paired with optional remote controls such as the RSL-4 and RSL-6 wall plates. A variable speed fan and efficient universal power supply keep things running quietly and reliably.
